SMAXSCREEN
90106000

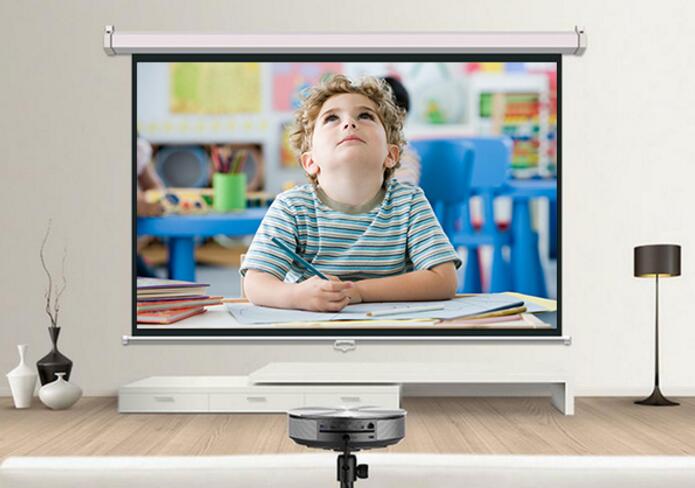

Manual Wall Screens are perfect for any classroom or office. Easily mount the screen to the wall or ceiling. With self-lock device, the screen can be stop at any position. This economical screen is ideal for small audience viewing. The screen is widely used in hotels, business centers, meeting rooms, schools, entertainment centers etc.

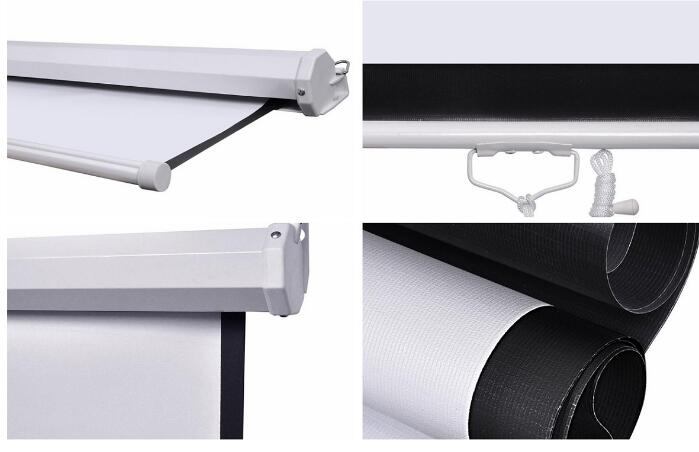

Features of Manual Screen
＊ High quality spraying painting metal casing is shaped by punch machine, strong and elegant, white or black color is available
＊ Use the best quality screen fabric to ensure perfect flat surface
＊ Equipped with self-lock device, the screen can be stop at any position
＊ Ease of installation, wall or ceiling mounted are available
＊ Light-weight and Value money and Durable
Main applications
Education、Business presentations、Hotel、Entertainment venues etc
Fabrics are available on our Manual Screen
＊ Fiberglass Matte
＊ Quality Matte White
＊ Matte White
Screen Parameter
Model No. | Size | Format | View Area( W x H) | Packing Size(LxWxH) | Gross Weight |
Unit: mm | Unit: mm | Unit: Kgs | |||
MS50 | 50"x50" | 1:1 | 1270 x 1270 | 1700X130X110 | 8 |
MS60 | 60"x60" | 1520 x 1520 | 1750x130x110 | 8.7 | |
MS70 | 70"x70" | 1800 x 1800 | 2000x130x110 | 9.9 | |
MS80 | 80"x80" | 2030 x 2030 | 2200x150x130 | 11 | |
MS84 | 84"x84" | 2130 x 2130 | 2300x150x130 | 12 | |
MS96 | 96"x96" | 2440 x 2440 | 2610x150x130 | 14 | |
MV72 | 72" | 4:3 | 1460 x 1100 | 1690x130x110 | 8.2 |
MV84 | 84" | 1710 x 1280 | 1920x130x110 | 9.3 | |
MV92 | 92" | 1860 x 1400 | 2100x130x110 | 10.2 | |
MV100 | 100" | 2030 x 1520 | 2270x130x110 | 10.5 | |
MV120 | 120" | 2440 x 1830 | 2670x150x130 | 13.1 | |
MV150 | 150" | 3050 x 2290 | 3220x150x130 | 17 | |
MH84 | 84" | 16:9 | 1860 x 1040 | 2090x130x110 | 9.8 |
MH92 | 92" | 2030 x 1150 | 2260x130x110 | 10.2 | |
MH100 | 100" | 2210 x 1240 | 2460x130x110 | 11.6 | |
MH106 | 106" | 2350 x 1320 | 2590x130x110 | 12.3 | |
MH120 | 120" | 2650 x 1490 | 2900x150x130 | 13.8 | |
MH150 | 150" | 3310 x 1860 | 3610x150x130 | 17.6 |
Size and specifications are subject to the actual product size, will be changed without notice
